Acton紫外窄带滤光片
Acton紫外窄带滤光片
Narrowband Filter Specifications/Part Numbers
| Peak Wavelength(nm) | FWHM(nm) | Min. Peak Transmission | 0.5”Diameter 2mm thick | 1.0”Diameter 2mm thick | 2.0”Diameter 2mm thick |
|---|---|---|---|---|---|
| 122 +/-2.5 nm | 10 max. | 5% | FN122-XN-.5D | FN122-XN-1D | FN122-XN-2D |
| 122 +/-2.5 nm | 15 max. | 10% | FN122-VN-.5D | FN122-VN-1D | FN122-VN-2D |
| 122 +/-2.5 nm | 20 max. | 15% | FN122-N-.5D | FN122-N-1D | FN122-N-2D |
| 126 +/-2.5nm | 20 +/-5 | 15% | FN126-N-.5D | FN126-N-1D | FN126-N-2D |
| 130 +/-2.5nm | 20 +/-5 | 15% | FN130-N-.5D | FN130-N-1D | FN130-N-2D |
| 135 +/-2.5nm | 20 +/-7.5 | 15% | FN135-N-.5D | FN135-N-1D | FN135-N-2D |
| 140 +/-2.5nm | 20 +/-5 | 15% | FN140-N-.5D | FN140-N-1D | FN140-N-2D |
| 147 +/-2.5nm | 20 +/-7.5 | 15% | FN147-N-.5D | FN147-N-1D | FN147-N-2D |
| 150 +/-2.5nm | 20 +/-5 | 15% | FN150-N-.5D | FN150-N-1D | FN150-N-2D |
| 155 +/-2.5nm | 20 +/-5 | 12% | FN155-N-.5D | FN155-N-1D | FN155-N-2D |
| 157 +/-2.5nm | 20 +/-5 | 12% | FN157-N-.5D | FN157-N-1D | FN157-N-2D |
| 160 +/-2.5nm | 20 +/-7.5 | 12% | FN160-N-.5D | FN160-N-1D | FN160-N-2D |
| 172 +/-2.5nm | 20 +/-7.5 | 15% | FN172-N-.5D | FN172-N-1D | FN172-N-2D |
| 180 +/-2.5nm | 20 +/-7.5 | 15% | FN180-N-.5D | FN180-N-1D | FN180-N-2D |
| 185 +/-2.5nm | 20 +/-7.5 | 15% | FN185-N-.5D | FN185-N-1D | FN185-N-2D |
| 185 +/-2.5nm | 20 +/-7.5 | 10% | FN185-HR-.5D | FN185-HR-1D | FN185-HR-2D |
| 190 +/-2.5nm | 20 +/-5 | 15% | FN190-N-.5D | FN190-N-1D | FN190-N-2D |
| 193 +/-2.5nm | 20 +/-5 | 15% | FN193-N-.5D | FN193-N-1D | FN193-N-2D |
| 200 +/-2.5nm | 20 +/-5 | 15% | FN200-N-.5D | FN200-N-1D | FN200-N-2D |
| 205 +/-2.5nm | 20 +/-5 | 15% | FN205-N-.5D | FN205-N-1D | FN205N-2D |
| 210 +/-2.5nm | 20 +/-5 | 15% | FN210-N-.5D | FN210-N-1D | FN210-N-2D |
| 214 +/-2.5nm | 20 +/-5 | 15% | FN214-N-.5D | FN214-N-1D | FN214-N-2D |
| 220 +/-2.5nm | 20 +/-5 | 15% | FN220-N-.5D | FN220-N-1D | FN220-N-2D |
| 222 +/-2.5nm | 20 +/-5 | 15% | FN222-N-.5D | FN222-N-1D | FN222-N-2D |
| 230 +/-2.5nm | 20 +/-5 | 15% | FN230-N-.5D | FN230-N-1D | FN230-N-2D |
| 240 +/-2.5nm | 20 +/-5 | 15% | FN240-N-.5D | FN240-N-1D | FN240-N-2D |
| 250 +/-2.5nm | 20 +/-5 | 15% | FN250-N-.5D | FN250-N-1D | FN250-N-2D |
| 254 +/-2.5nm | 20 +/-5 | 15% | FN254-N-.5D | FN254-N-1D | FN254-N-2D |

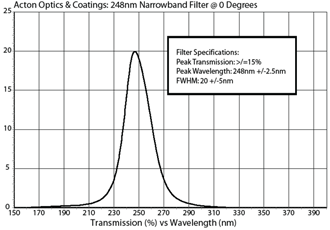

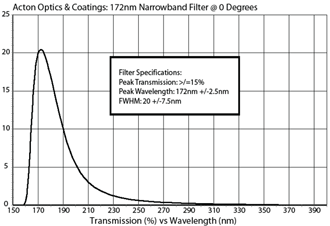

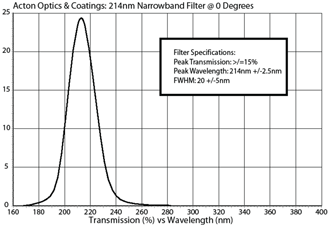

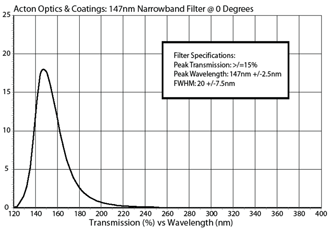

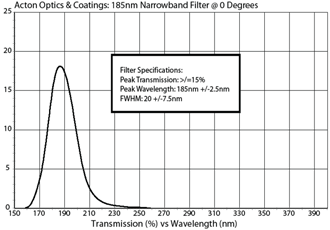

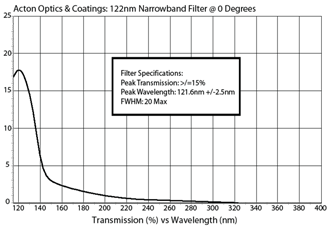

典型曲线
