Broadband VUV/UV Optical Filters
Broadband Filter Specifications/Part Numbers
| Peak Wavelength(nm) | FWHM(nm) | Min. Peak Transmission | 0.5”Diameter 2mm thick | 1.0”Diameter 2mm thick | 2.0”Diameter 2mm thick |
|---|---|---|---|---|---|
| 130 +/-5nm | 40 +/-10 | 30% | FB130-B-.5D | FB130-B-1D | FB130-B-2D |
| 140 +/-5nm | 60 +/-10 | 30% | FB140-B-.5D | FB140-B-1D | FB140-B-2D |
| 150 +/-5nm | 60 +/-10 | 30% | FB150-B-.5D | FB150-B-1D | FB150-B-2D |
| 180 +/-5nm | 40 +/-10 | 30% | FB180-B-.5D | FB180-B-1D | FB180B-2D |
| 190 +/-5nm | 35 +/-10 | 30% | FB190-B-.5D | FB190-B-1D | FB190B-2D |
| 200 +/-5nm | 35 +/-10 | 30% | FB200-B-.5D | FB200-B-1D | FB200-B-2D |
| 210 +/-5nm | 35 +/-10 | 30% | FB210-B-.5D | FB210-B-1D | FB210-B-2D |
| 214 +/-5nm | 35 +/-10 | 30% | FB214-B-.5D | FB214-B-1D | FB214-B-2D |
| 220 +/-5nm | 35 +/-10 | 30% | FB220-B-.5D | FB220-B-1D | FB220-B-2D |
| 230 +/-5nm | 35 +/-10 | 30% | FB230-B-.5D | FB230-B-1D | FB230-B-2D |
| 240 +/-5nm | 35 +/-10 | 30% | FB240-B-.5D | FB240-B-1D | FB240-B-2D |
| 250 +/-5nm | 40 +/-10 | 30% | FB250-B-.5D | FB250-B-1D | FB250-B-2D |
| 254 +/-5nm | 40 +/-10 | 30% | FB254-B-.5D | FB254-B-1D | FB254-B-2D |

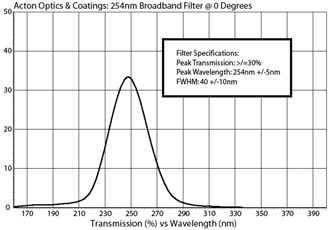

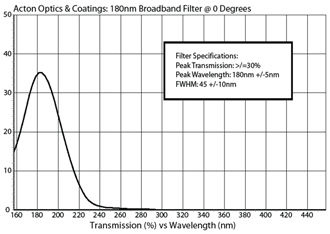

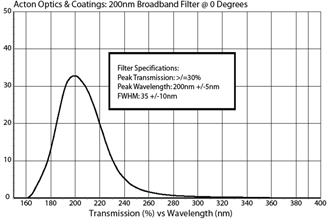

典型曲线
Wideband VUV/UV Optical Filters
| Peak Wavelength (nm) |
FWHM (nm) |
Min. Peak Transmission |
0.5” Diameter 2mm Thick |
1.0” Diameter 2.5mm Thick |
2.0” Diameter 4mm thick |
|---|---|---|---|---|---|
| 130 +/-10nm | 100 +/-25 | 40% | FW130-W-.5D | FW130-W-1D | FW130-W-2D |
| 160 +/-10nm | 100 +/-25 | 45% | FW160-W-.5D | FW160-W-1D | FW160-W-2D |
| 200 +/-10nm | 60 +/-20 | 45% | FW200-W-.5D | FW200-W-1D | FW200-W-2D |
| 250 +/-10nm | 80 +/-20 | 45% | FW250-W-.5D | FW250-W-1D | FW250-W-2D |
| 300 +/-10nm | 100 +/-25 | 45% | FW300-W-.5D | FW300-W-1D | FW300-W-2D |
NOTE: Filters are available for all wavelengths up to 320nm. Specifications for FWHM, peak
transmission and peak wavelength fall within peak wavelength ranges listed above.

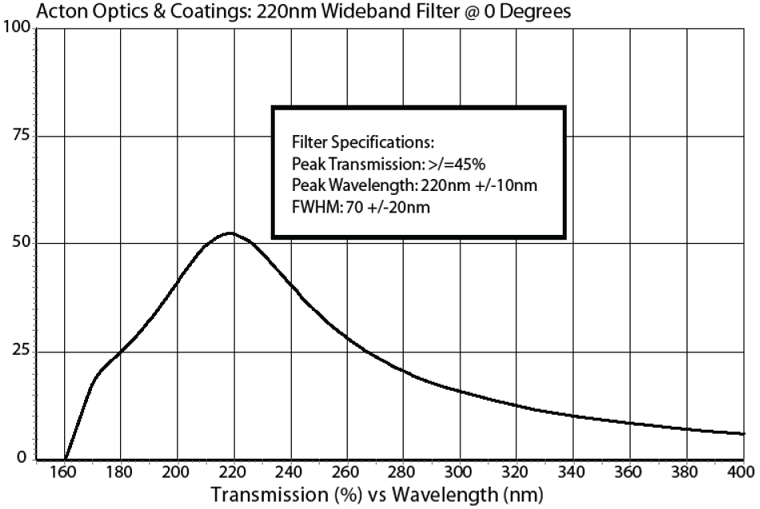

典型曲线
滤光片尺寸
NOTE: Filters are supplied open-faced unless otherwise specified
* 2.0“ Diameter 122-157nm filters are 5mm thick
| Unmounted Filter Diameter |
Diameter Tolerance |
Mounted Filter Diameter ±0.005” |
Unmounted Filter Thickness |
Mounted Thickness | Clear Aperture |
|---|---|---|---|---|---|
| 0.5” (12.7mm) | +0.00”/-0.005” (0.127mm) | 0.625” (15.88mm) | 0.079″ (2mm) | 0.300” (7.62mm) | 0.450” (11.43mm) |
| 1.0” (25.4mm) | +0.00”/-0.005” (0.127mm) | 1.200” (30.48mm) | 0.098″ (2.5mm) | 0.375” (9.53mm) | 0.800” (20.32mm) |
| 2.0” (50.8mm) | +0.00”/-0.005” (0.127mm) | 2.225” (56.52mm) | 0.197″ (4mm) | 0.500” (12.7mm) | 1.900” (48.26mm) |
滤光片材料
| Wavelengths | < 140nm | 140-169nm | 170-320nm |
|---|---|---|---|
| Substrate Material | VUV MgF2 | VUV CaF2 | UV Grade Fused Silica |
