Acton紫外—— 衰减片

基本信息

Acton紫外—— 衰减片

VUV 衰减片 : 120 – 200 nm

Optical Density Nominal Transmission Transmission Range 0.5″ Part Numbers 1.0″ Part Numbers 2.0″ Part Numbers
0.3 50% 42-58% FND0.3-.5D-V FND0.3-1D-V FND0.3-2D-V
0.5 30% 25-35% FND0.5-.5D-V FND0.5-1D-V FND0.5-2D-V
1.0 10% 8-12% FND1-.5D-V FND1-1D-V FND1-2D-V
1.5 3.0% 2.5-3.5% FND1.5-.5D-V FND1.5-1D-V FND1.5-2D-V
2.0 1.0% 0.7-1.4% FND2-.5D-V FND2-1D-V FND2-2D-V
3.0 0.1% 0.06-0.17% FND3-.5D-V FND3-1D-V FND3-2D-V
4.0 0.01% 0.005-0.02% FND4-.5D-V FND4-1D-V FND4-2D-V
5.0 0.001% 0.0007-0.0015% FND5-.5D-V FND5-1D-V FND5-2D-V
6.0 0.0001% 0.00007-0.00014% FND6-.5D-V FND6-1D-V FND6-2D-V

注意: 所有VUV衰减片的衬底材料都是MgF2

UV 衰减片 : 200 – 320 nm

Optical Density Nominal Transmission Transmission Range 0.5″ Part Numbers 1.0″ Part Numbers 2.0″ Part Numbers
0.3 50% 42-58% FND0.3-.5D-M FND0.3-1D-M FND0.3-2D-M
0.5 30% 25-35% FND0.5-.5D-M FND0.5-1D-M FND0.5-2D-M
1.0 10% 8-12% FND1-.5D-M FND1-1D-M FND1-2D-M
1.5 3.0% 2.5-3.5% FND1.5-.5D-M FND1.5-1D-M FND1.5-2D-M
2.0 1.0% 0.7-1.4% FND2-.5D-M FND2-1D-M FND2-2D-M
3.0 0.1% 0.06-0.17% FND3-.5D-M FND3-1D-M FND3-2D-M
4.0 0.01% 0.005-0.02% FND4-.5D-M FND4-1D-M FND4-2D-M
5.0 0.001% 0.0007-0.0015% FND5-.5D-M FND5-1D-M FND5-2D-M
6.0 0.0001% 0.00007-0.00014% FND6-.5D-M FND6-1D-M FND6-2D-M

注意:所有VUV衰减片的衬底材料都是熔融石英 fused silica

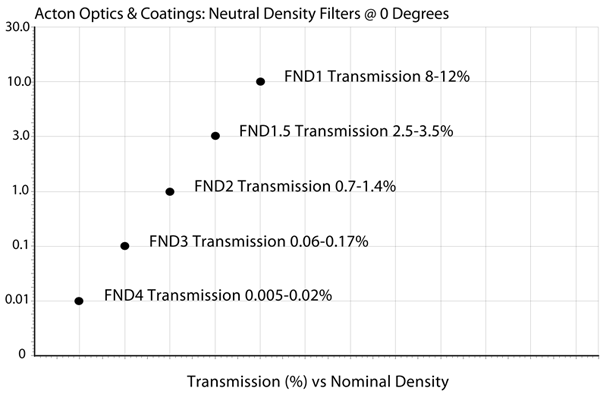

衰减曲线

Neutral density filters
