LDTLS波长可调单色光源

基本信息

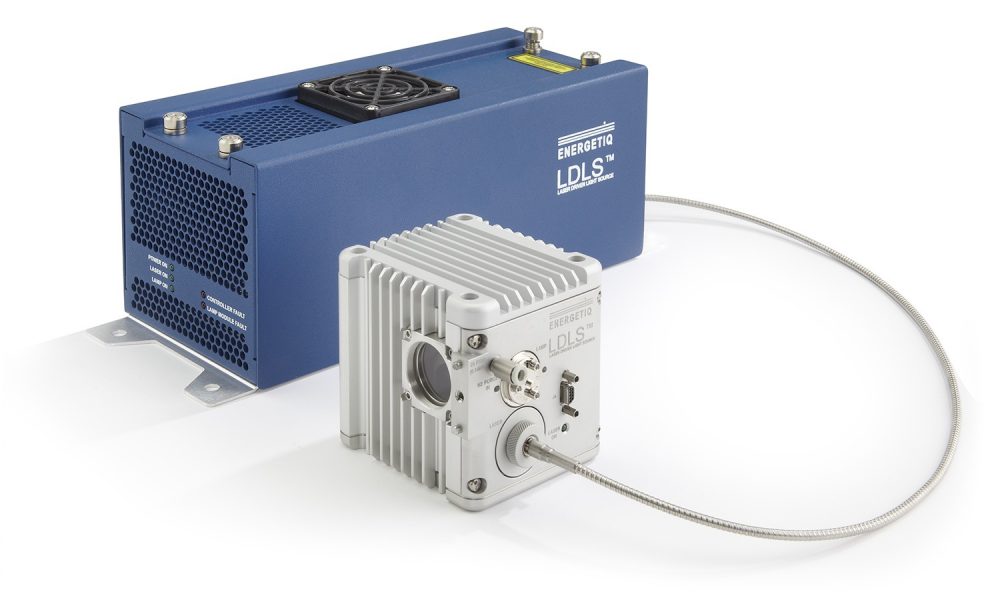

LDTLS光源

  • 高光通量 (300 nm – 1100 nm)
  • 高达 3 mW 输出功率 (带宽 ~6.5 nm @ 1500 µm 光纤)
  • 宽光谱范围: 170 nm – 2500 nm
  • 低噪声,高稳定性
  • 200 nm/s扫描速度
  • 10,000+ 小时工作时间

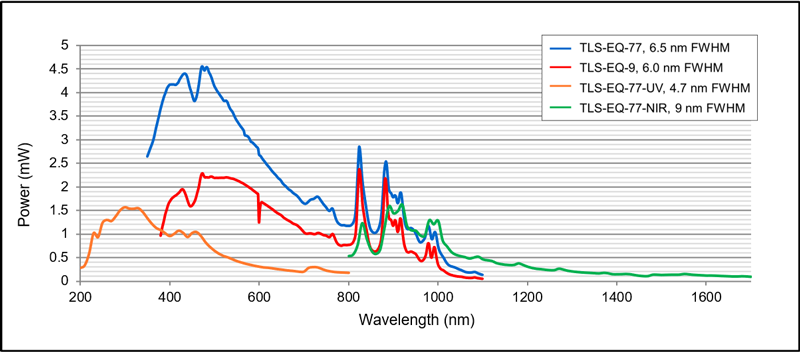

光谱图

TLS-Spectral-Flux-Graph-Feb-2021



参数配置
  TLS-EQ-9 TLS-EQ-77 TLS-EQ-77-UV TLS-EQ-77-NIR
Wavelength Range 380 nm–1100 nm 350 nm–1100 nm 200 nm – 800 nm 800 nm – 1700 nm
Wavelength Accuracy +/- 0.5 nm +/- 0.5 nm +/- 0.5 nm +/- 0.5 nm
Scan Speed <20 ms for a 2 nm step <20 ms for a 2 nm step <20 ms for a 2 nm step <20 ms for a 2 nm step
Standard Optical Output 1500 µm core diameter fiber optic cable 1500 µm core diameter fiber optic cable 600 µm core diameter fiber optic cable 1500 µm core diameter fiber optic cable
Numerical Aperature (NA) 0.39 0.39 0.39 0.39
Spectral Resolution (FWHM) User selectable: 1.0 nm-8.0 nm 6.5 nm 4.7 nm 9 nm
Laser Class Class 1 (IEC 60825: 2014) Class 1 (IEC 60825: 2014) Class 1 (IEC 60825: 2014) Class 1 (IEC 60825: 2014)
Maximum In-Band Flux 2.37 mW at 824 nm 4.9 mW at 400 nm 1.6 mW at 300 nm 1.62 mW at 920 nm
Average In-Band Flux ~1.20 mW ~2.3 mW ~1.1 mW (200 nm – 500 nm) ~0.44 mW
