General Details
ID Quantique公司的ID100系列紧、凑经济型单光子计数模块,具有优异的时间分辨率(用于TCSPC应用)和低死时间。基于可靠的硅雪崩光电二极管在可见光谱范围内的灵敏度,该模块能够探测到低至单光子水平的微弱光信号。在只有40 ps的时间分辨率和45 ns的死时间下,该模块在所有需要单光子探测的高精度定时应用中提供优异的性能。ID100具有特别好的定时稳定性,计数率可达20MHz。
ID101系列是目标OEM应用的特小尺寸可见光的光子计数器。它由一个标准的TO5或TO8的光电封装、一个直径50微米的单光子APD和一个安装在热电制冷器上的快淬电子器件组成。
ID120是自由空间模块,被动淬灭,最大探测效率值在800纳米左右。模块的主要优点是量子效率高达80%,有效面积大,设置可调。

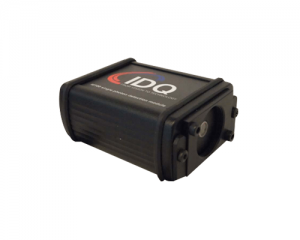

ID100 可见光单光子探测器 |

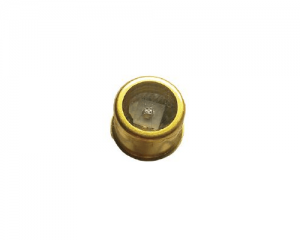

ID101 OEM可见光单光子探测器模块 |

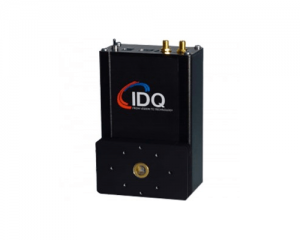

ID120 可见光单光子探测器 |
id100参数
参数Parameter
|
Min
|
Typical
|
Max
|
单位Units
|
|
波长范围
|
350
|
900
|
nm
|
Optimal timing resolution is obtained when incoming photons are focused on thephotosensitive area.
The ID100 is free of indicating LEDs to maintain complete darkness during measurements.
The detector output is designed to avoiddistorsion and ringing when driving a 50 Ohms load.
Universal network adapter provided
(110/220 V).
See on page 4 the A-PPI-D pulse shaper fornegative input equipment compatibility.
The ID100-SMF20 contains a single mode fibre optimized to your operating wavelength
The ID100-MMF50 contains a 50/125 μmmulti-mode fibre optimized for the visiblespectral range with a 0.22 numerical aperture. The coupling efficiency is larger than 80%.
The ID100-MMF100 contains a 100/140 μmmulti-mode fibre optimized for the visiblespectral range with a 0.22 numerical aperture.The coupling efficiency is larger than 50%.
|
|
时间分辨率[FWHM]
|
40
|
60
|
ps
|
||
单光子探测效率(SPDE)
|
|||||
at 400nm
|
15
|
18
|
%
|
||
at 500nm
|
30
|
35
|
%
|
||
at 600nm
|
20
|
25
|
%
|
||
at 700nm
|
15
|
18
|
%
|
||
at 800nm
|
5
|
7
|
%
|
||
at 900nm
|
3
|
4
|
%
|
||
脉冲后效应概率
|
0.5
|
%
|
|||
输出信号脉宽
|
9
|
10
|
15
|
ns
|
|
输出信号幅值
|
1.5
|
2
|
2.5
|
V
|
|
死时间
|
45
|
50
|
ns
|
||
最大计数率
|
20
|
MHz
|
|||
电源电压
|
5.6
|
6
|
6.5
|
V
|
|
电源电流
|
100
|
150
|
mA
|
||
储存温度
|
-40
|
70
|
摄氏度℃
|
||
制冷时间
|
5
|
s
|
暗计数率: ID100探测器一共有四种级别:Educational(教学级),Regular(常规级),Standard(标准级)和Ultra-Low Noise(低噪声级),主要取决于暗计数率的性能参数。
id101 OEM版参数
参数Parameter
|
Min
|
Typical
|
Max
|
单位/Units
|
|
波长范围
|
350
|
900
|
nm
|
||
有效感光区域直径
|
|||||
ID101-20/ID101-SMF20
|
20
|
um
|
|||
ID101-50/ID101-MMF50或MMF100
|
50
|
um
|
|||
时间分辨率[FWHM]
|
40
|
60
|
ps
|
||
单光子探测效率(SPDE)
|
|||||
at 400nm
|
15
|
18
|
%
|
||
at 500nm
|
30
|
35
|
%
|
||
at 600nm
|
20
|
25
|
%
|
||
at 700nm
|
15
|
18
|
%
|
||
at 800nm
|
5
|
7
|
%
|
||
at 900nm
|
3
|
4
|
%
|
||
暗计数率(DCR)
|
|||||
ID101-20
|
30
|
250
|
Hz
|
||
ID101-50
|
100
|
300
|
Hz
|
||
脉冲后效应概率
|
0.5
|
%
|
|||
输出信号脉宽
|
|||||
ID101-20/ID101-SMF20
|
30
|
35
|
40
|
ns
|
|
ID101-50/ID101-MMF50或MMF100
|
40
|
45
|
50
|
ns
|
|
输出信号幅值(高阻抗)
|
VDD
|
V
|
|||
输出驱动功能
|
4
|
mA
|
|||
死区时间
|
|||||
ID101-20/ID101-SMF20
|
30
|
35
|
40
|
ns
|
|
ID101-50/ID101-MMF50或MMF100
|
40
|
45
|
50
|
ns
|
|
最大计数率(脉冲光)
|
|||||
ID101-20/ID101-SMF20
|
28
|
MHz
|
|||
ID101-50/ID101-MMF50或MMF100
|
22
|
MHz
|
|||
VDD输入电压
|
4.8
|
5.0
|
5.2
|
V
|
|
VDD电流
|
0.25
|
2.2
|
mA
|
||
VOP电源电压
|
-24
|
-26
|
V
|
||
VOP电流
|
100
|
uA
|
|||
储存温度
|
-40
|
70
|
摄氏度℃
|
